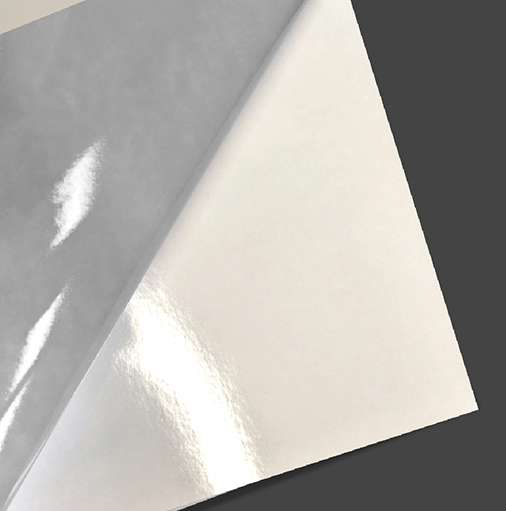

Solvent Glossy Vinyl Sticker Gray Adhesive CV103G

High Opacity Display Fabric AA202 is a front light box fabric known for its ultra-high cost-effectiveness and eco-friendly features. This fabric is made from recyclable polyethylene, promoting sustainability while offering a flat fabric surface and stable and consistent printing quality ideal for indoor and outdoor front display advertisements (under mild weather conditions). The recommended printing methods for this fabric are Dye-sub Direct and Dye-sub Transfer. The fabric has a 3-5% elasticity, enabling it to suit various irregular display forms. The eco-friendly nature of this fabric makes it a perfect choice for creating high-quality banners that are durable and long-lasting while also preserving the environment. The fabric meets sustainable standards, making it an ideal option for environmentally-conscious businesses looking to promote their brands in a cost-effective and eco-conscious manner.


CONTACT NOW

Overview

ColorPRO Technology: The Standard for Color Excellence in Digital Printing

• ColorPRO Technology, designed together with HP Latex printers and original HP inks, enables optimized printing system performance.

• Printing materials with ColorPRO Technology utilize innovations designed to optimize color vividness, sharpness, and durability on targeted digital printers.

• Printing Materials with ColorPRO Technology achieve exceptional quality and consistent performance through rigorous standards defined and monitored by HP.


Grab Attention with Bright, Vibrant Image Quality

• From event signage to retail displays, achieve a high-quality look with this versatile, easy-to-handle, quick-mount self-adhesive vinyl.

• Designed for excellent gloss uniformity and color gamut.

• Ideal for a wide range of indoor and outdoor applications.


Count on Long Lasting, Durable Results

• Prints achieve 3 years unlaminated display permanence outdoors; 3 years in-window.

• Get optimal results—including weather-resistance without additional lamination—using HP Latex Inks.

Specification

Technical Specifications of Solvent Glossy Vinyl Sticker Gray Adhesive CV103G

Weight (Base film)116 g/m2 per IS0 536 Test Method
Weight (With liner)340 g/m2 per IS0 536 Test Method
Thickness (Base film)85 microns (3.3 mil) per IS0 534 Test Method
Thickness (With liner)315 microns (12.4 mil) per lS0 534Test Method
Base vinylMonomeric
LinerDouble Sided Polyethylene Bleached Kraft Paper
Adhesion, initial5.0 N/10mm per PSTC 101A (rev o5/07)
Opacity98%
Brightness78 per TAPPIT-452 Test Method
Whiteness89 per IS0 11476 Test Method
FinishGlossy
Dimensional stability (MD) 70° C for 48 hrs0.6mm according to FINAT FTM14
Dimensional stability (CD) 70° C for 48 hrs0.4mm according to FINAT FTM14
Dimensional stability (MD) 70° C for 168 hrs0.7mm according to FINAT FTM14
Dimensional stability (CD) 70° C for 168 hrs0.5mm according to FINAT FTM14
Operating temperature15to 35°C (59 to 95°F)
Operating humidity40 to 60%
Water resitanceWater-resistant using HP Latex Inks
Dry timelnstant
LaminationCold
Shelf life1 year, unopened in original packaging
Storage temperature10 to 40° C (50 to 104°F)
Storage humidity20 to 80% relative humidity
Country of originProduct of China
Ordering informationRoll sizes
42 in x 164 ft (1067 mm x 50 m)
50 in x 164 ft (1270 mm x 50 m)
54 in x 164 ft (1372 mm x 50 m)
60 in x 164 ft (1524 mm x 50 m)
Region
United States, Canada, and Latin America
