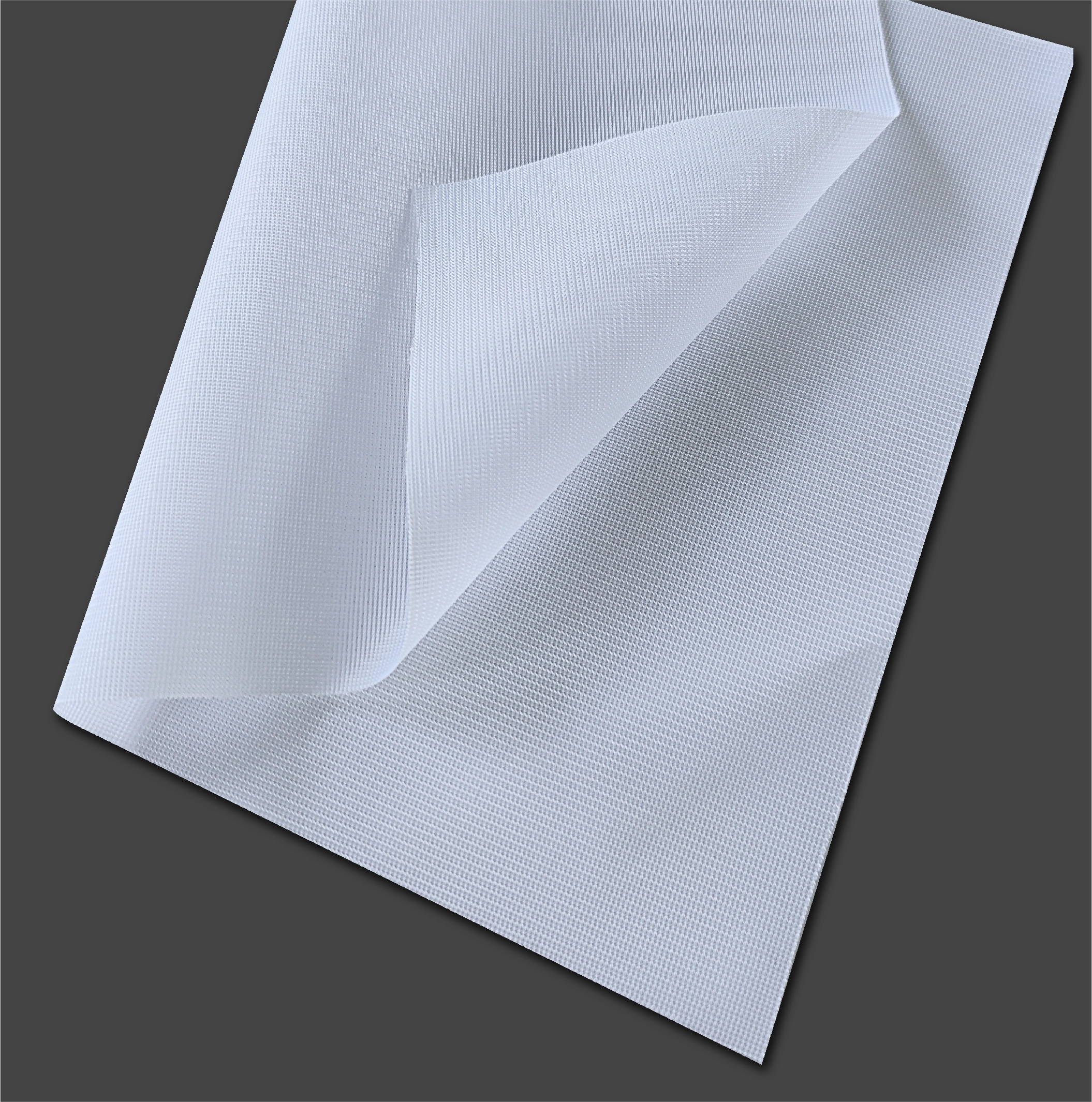

Popular Flag Fabric AA101 is a high-quality polyester fabric that has been specially designed for use in creating flags, beach flags, and banners. With a weight of 110±10gsm and a thickness of 280±30μm, this fabric offers excellent opacity (60±5%) and whiteness (160±10) for bright and clear prints. This fabric is ideal for sublimation printing, with recommended fixation temperatures between 190-200℃ for 45 seconds. It is perfect for creating personalised flags and banners with a range of colours and patterns, resulting in realistic and beautiful images.
| Base Material | 100% Polyester | DIN 60001, ASTM D7641 |
| Yarn | 40D*40D*40D | DIN EN 2060, ASTM D1907 |
| Weave Method | Warp-knitted 3 bar | --- |
| Weight | 110±10gsm | ISO536 |
| Thickness | 280±30μm | ISO534 |
| Opacity | 60±5% | ISO2471 |
| Whiteness | 160±10 | ISO11475 |
| Color | L:84.0±2.0; a:9.0±2.0; b:-20.0±2.0 | --- |
| Gloss[60°] | 4±2 | --- |
| Elasticity | Warp:(3±2)% Weft:(16±4)% | Length*Width=200*50mm, Speed=100mm/min, Tension=20N |
| Shrinkage | ≤2% | 200°C, 45s |
| Yellowing △E | ≤2 | 200°C, 45s |
| Flame Resistance | DIN 4102-1 B1, NFPA 701 | DIN 4102-1 B1, NFPA 701 |
| Recommend Fixation Temperature | 190-200℃, 45s | --- |
| Yellowing Temperature | ≥210℃ | SUPRKC REX-C400,30s |
Size
| Popular Flag Fabric AA101 Size | |||
| Width | 1.60 m/2.60 m/3.20 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
| Length | 100m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
Compatible Inks
| Compatible Inks | |
| Dye-sub Transfer | Dye-sub Direct |
