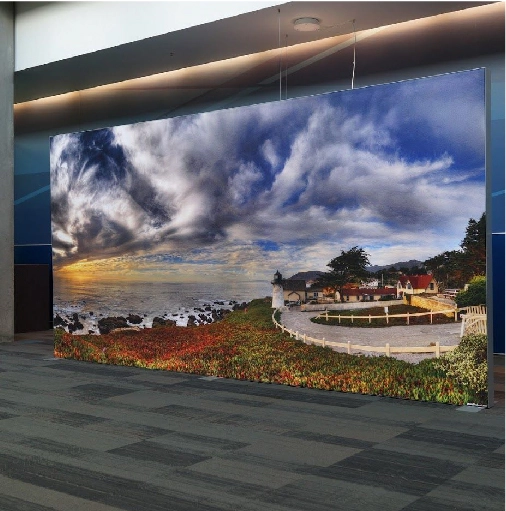

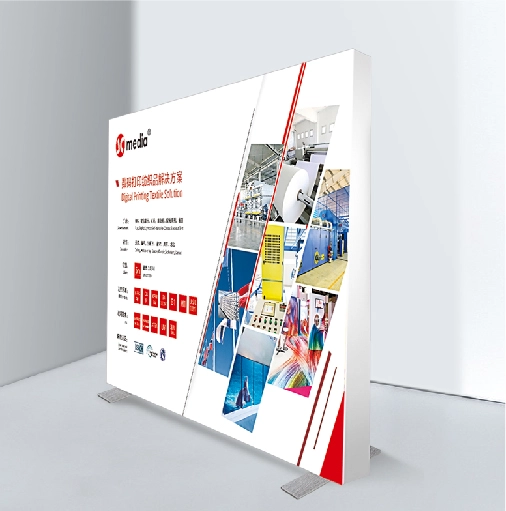

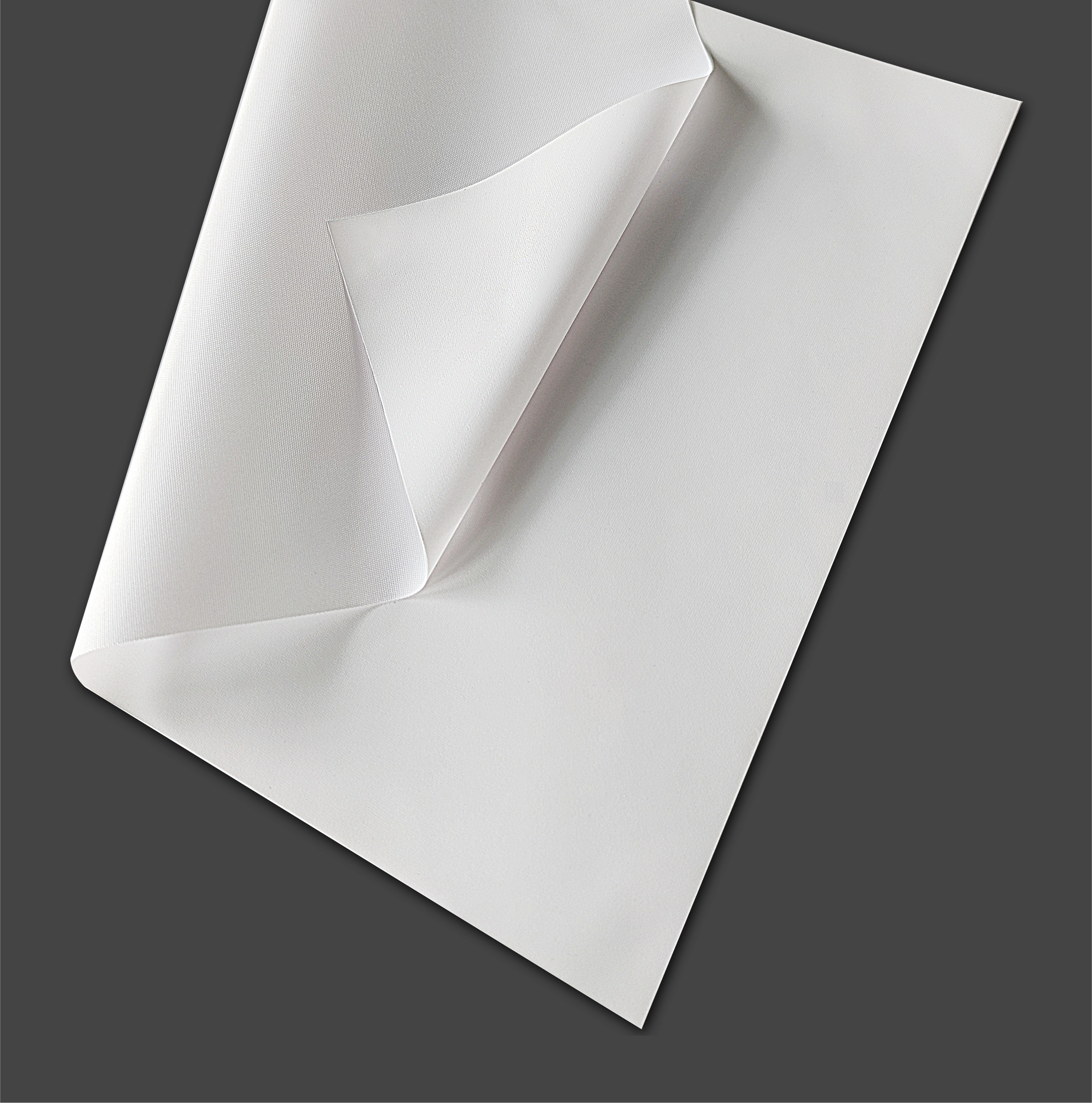

Milky Backlit Textile AA501(B1) is a highly versatile textile designed for various applications, including LED lightbox, frame system, pop-up, and SEG projects. The textile material is made of 100% polyester using a woven weave method with 68D*150D yarn. The material has superior strength, making it perfect for long-term use. The fabric has a weight of 140±10gsm and thickness of 150±30μm, offering high opacity of 85±5 and a whiteness value of 95±10, with a color value of L:90.0±2.0, a:1.0±2.0, b:-4.0±2.0. It is offered in a range of widths, including 1.61 m, 1.65 m, 2.03 m, 2.50 m, 2.60 m, 3.20m, and 3.22m, with lengths of 50 m or 100 m. To maintain the fabric's quality, it's best to keep it stored in its original packaging and avoid exposure to direct sun rays and heat. The recommended storage temperature and humidity are 15°C [59°F] ~ 35°C [95°F], 20 ~ 65% RH, with a shelf life of 1 year under these conditions.
Base Material | 100% Polyester | DIN 60001, ASTM D7641 |
Yarn | 68D*150D | DIN EN 2060, ASTM D1907 |
Weave Method | Woven | --- |
Weight | 140±10gsm | ISO536 |
Thickness | 150±30μm | ISO534 |
Opacity | 85±5 | ISO2471 |
Whiteness | 95±10 | ISO11475 |
Color | L: 90.0±2.0; a: 1.0±2.0; b: -4.0±2.0 | --- |
Gloss[60°] | 5±2 | --- |
Flame Resistance | DIN 4102-1 B1, NFPA 701 | DIN 4102-1 B1, NFPA 701 |
Size
Milky Backlit Textile AA501(B1) Size | |||
Width | 1.61 m/1.65 m/2.03 m/2.50 m/2.60 m/3.20 m/3.22 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
Length | 50 m/100 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
Compatible Inks
Compatible Inks |
UV |
