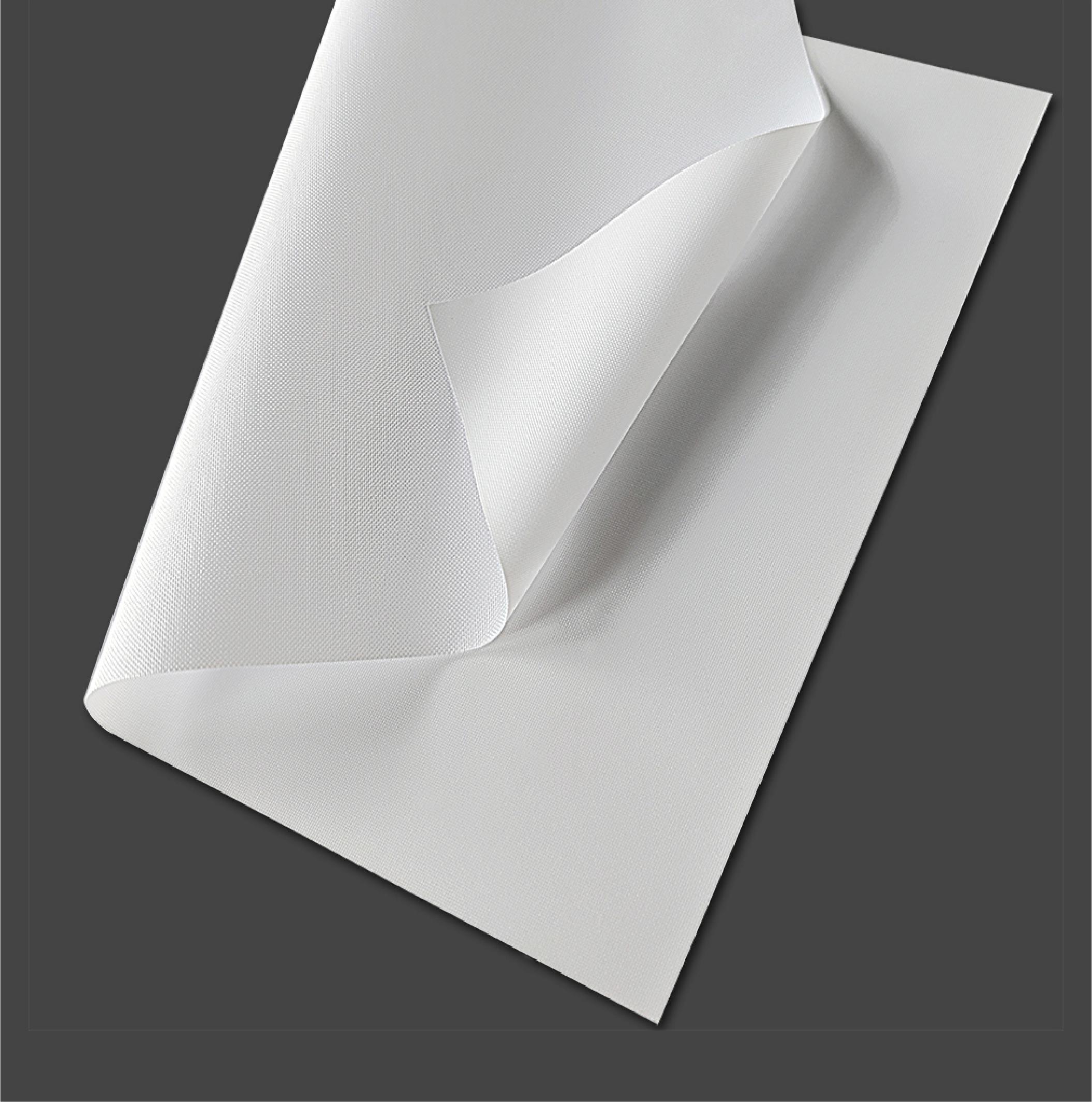

Jelly Backlit Textile AA531(B1) is a top-quality fabric material perfect for various uses, such as pop-up displays, frame systems, SEG projects, and LED light boxes. Manufactured from 100% polyester, the fabric boasts a woven construction utilizing 150D*2X150D*2 yarn, which provides superior durability. It is 175±10gsm in weight, 230±30μm thick, and has an opacity of 80±5 and a whiteness value of 135±10. Additionally, it features a color value of L: 90.0±2.0, a: 6.0±2.0, and b: -12.5±2.0. Jelly Backlit Textile AA531(B1) comes in various widths, including 1.65 m, 2.03 m, 2.50 m, 2.60 m, and 3.20 m, with lengths of 50 m or 100 m, while still providing clear and bright illumination that makes it an excellent option for remarkable LED displays.
| Base Material | 100% Polyester | DIN 60001, ASTM D7641 |
| Yarn | 150D*2X150D*2 | DIN EN 2060, ASTM D1907 |
| Weave Method | Woven | --- |
| Weight | 175±10gsm | ISO536 |
| Thickness | 230±30μm | ISO534 |
| Opacity | 80±5 | ISO2471 |
| Whiteness | 135±10 | ISO11475 |
| Color | L: 90.0±2.0; a: 6.0±2.0; b: -12.5±2.0 | --- |
| Gloss[60°] | 3±2 | --- |
| Flame Resistance | DIN 4102-1 B1 | DIN 4102-1 B1 |
Size
| Jelly Backlit Textile AA531(B1) Size | |||
| Width | 1.65 m/2.03 m/2.50 m/2.60 m/3.20 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
| Length | 50 m/100 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
Compatible Inks
| Compatible Inks |
| UV |
